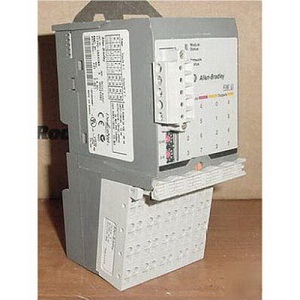

1734 POINT I/O Modules allen-bradley
The 1734D series is a set of din-rail mounted products with an integrated DeviceNet communication interface, various combinations of onboard I/O points, removable terminations, and a PointBus expansion port. The DeviceNet interface presents the integrated I/O as a single DeviceNet node while expansion I/O modules will appear as separate nodes. The 1734D series includes a nonisolated DeviceNet communication interface. The 24 VDC from the DeviceNet connection powers a nonisolated DC/DC converter that generates +5 VDC. This +5 VDC powers the 1734D series electronics and connects to the PointBus port to power the expansion I/O electronics. The Point I/O family provides a wide range of input and output modules to span many applications, from high-speed digital to process control. Point I/O modules support producer/consumer technology, which allows input information and output status to be shared among multiple Logix controllers.
- Class: Programmable Logic Controller Module
- Standards: CUL listed, CUL class I, division 2 groups A, B, C and D certified, UL listed, CE marked for all applicable directives, C-tick marked
Description
Model Number
1734 POINT
Allen-Bradley
Additional Information
Point I/O™ PointBlock Digital AC/DC Module, Number Of Channels: 16, Input: 8, Output: 8, Voltage Rating: 120 VAC, Current Rating: 5 MA, Communication: DeviceNet, Mounting: DIN Rail, Length: 5-1/4 IN, Width: 2.36 IN, Height: 3 IN, Temperature Rating: -20 To 55 DEG C, Environmental Conditions: Storage Temperature: -40 To 85 DEG C (-40 To 185 DEG F), Relative Humidity: 5 – 95% (Non-Condensing), Vibration: 5 G At 10 – 500 HZ, Operating Shock: 30 G, Non-Operating Shock: 50 G, Power Dissipation: 2 W At 24 VDC, Color: Dark-Gray, Torque Rating: 5 – 7 LB-IN (0.5 – 0.6 NM), Power Consumption: 8.2 W Maximum At 24 VDC, Input Delay Time: On To Off: 20 MS Hardware Plus (0 – 65 MS Selectable), Standard/Approvals: CUL listed, CUL class I, division 2 groups A, B, C and D certified, UL listed, CE marked for all applicable directives, C-tick marked
Specifications
-
-
Item Name: Digital AC/DC Module
-
Sub Brand: Point I/O™, PointBlock
-
Number Of Channels: 16
-
Input: 8
-
Output: 8
-
Voltage Rating: 120 VAC
-
Current Rating: 5 MA
-
Communication: DeviceNet
-
Mounting: DIN Rail
-
Length: 5-1/4 IN
-
Width: 2.36 IN
-
Height: 3 IN
-
Temperature Rating: -20 To 55 DEG C
-
Environmental Conditions: Storage Temperature: -40 To 85 DEG C (-40 To 185 DEG F), Relative Humidity: 5 – 95% (Non-Condensing), Vibration: 5 G At 10 – 500 HZ, Operating Shock: 30 G, Non-Operating Shock: 50 G
-
Power Dissipation: 2 W At 24 VDC
-
Color: Dark-Gray
-
Torque Rating: 5 – 7 LB-IN (0.5 – 0.6 NM)
-
Power Consumption: 8.2 W Maximum At 24 VDC
-
Input Delay Time: On To Off: 20 MS Hardware Plus (0 – 65 MS Selectable)
-
Brand
Allen-Bradley
