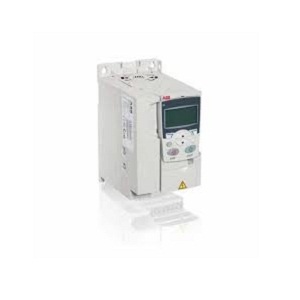

ABB ACS355-03U-09A8-2+J400 AC Drive 3HP ACS35503U09A82J400

$990.00

AVAILABILITY: In Stock Can Ship Right Now

1 in stock

SKU: ACS355-03U-09A8-2+J400 Category: Tag:

Description

ABB ACS355-03U-09A8-2+J400 AC Drive 3HP ACS35503U09A82J400

  • Extended Product Type: AC Drives
  • Product ID: ACS355-03U-09A8-2+J400
  • Product Code: 3AUA0000078239
  • ABB Type Designation: AC Drives

Description of ABB ACS355-03U-09A8-2+J400 AC Drive 3HP

ABB ACS355-03U-09A8-2+J400 Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations with Assistant control panel + brake chopper – ABB (ACS355 series) – Rated input voltage 200Vac-240Vac (3-phase / 3P) – Rated current 9.8A (I2N; 200-240Vac) – Rated power 2.2kW (nom.; 200-240Vac) / 3HP (nom.; 200-240Vac) – IP20 – Frame size R2 – Surface / wall mounting – with built-in MPPT (the most power output possible) + Built-in sensorless flow calculation – compatible with input voltages 200Vac-240Vac (208Vac / 220Vac / 230Vac) (3-phase / 3P) – item code #3AUA0000078239 – equivalent to ACS35503U09A82J400

Specification of ABB ACS355-03U-09A8-2+J400 AC Drive 3HP 9.8A

  • Primary brand: ABB
  • Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
  • Product series / family name: ACS355 series
  • Network frequency: 50 Hz
  • Functions: ACS355 series
  • Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter for solar pumping stations, MPPT (the most power output possible), Built-in sens.less flow calculation, Real-time clock, Automatic start and stop
  • Design: Assistant control panel, brake chopper
  • Supply voltage (AC): 200Vac-240Vac, 200Vac-240Vac (208Vac / 220Vac / 230Vac)
  • Type of network: 3-phase / 3P
  • Rated current: 9.8A (I2N; 200-240Vac)
  • Rated active power (kW): 2.2kW (nom.; 200-240Vac)
  • Rated power (HP): 3HP (nom.; 200-240Vac)
  • Mounting mode: Surface / wall
  • Digital inputs: 1 x digital input (12-24Vdc; PNP/NPN) (DI1 STOP/START)
    • 1 x digital input (12-24Vdc; PNP/NPN) (DI2 FWD/REV)
    • 1 x digital input (12-24Vdc; PNP/NPN) (DI3 constant speed selection 1)
    • 1 x digital input (12-24Vdc; PNP/NPN) (DI4 Constant speed selection 2)
    • 1 x digital input (12-24Vdc; PNP/NPN; 0-16 kHz pulse train) (DI5 programmable)
  • Digital outputs: 1 x digital output (SPDT rly. contact; 0.5A at 30Vdc; 5A at 230Vac) (RO1)
    • 1 x digital output (30Vdc; PNP transistor; 10Hz-16kHz; 100mA) (DO1)
  • Analog inputs: 2 x analog inputs (0-20mA / 4-20mA / 0-10Vdc / 2-10Vdc) (AI1 / AI2)
  • Analog outputs: 1 x analog output (0-20mA / 4-20mA) (AO1)
  • Degree of protection: IP20
  • Dimensions: Frame size R2
  • Ambient air temperature for operation: -10…+40 °C
  • Contents: Panel mounting kit, ACS-CP-A panel
  • Power dissipation/losses: 111 W
  • Application type: Machinery drives, Solar pump drives, mixing applications, conveyors, packaging machines, bottling lines, winders
  • Order code / Manufacturer SKU: 3AUA0000078239
  • Manufacturer product status: Commercialized
  • Equivalent to: ACS35503U09A82J400
  • Compliant with standard(s)CE, IEC 60721-3-3 1C2; 1S2; 2C2; 2S2; 3C2; 3S2, EN/IEC 61000-3-12, cUL, UL, C-tick, EAC, RoHS, ISO 9001, ISO 14001, RCM

Benefits

  • In the ABB machinery drives portfolio ACS355 represents the micro drive range — meeting requirements like compact size / being optimized for a lower power range / cost-effectiveness and ease of use
  • By choosing an ABB machinery drive — machine builders not only get all the clever things inside the drive but also everything outside it – the entire global ABB
  • This means a full range of products and services designed to support their business

Applications

  • ABB machinery drives are designed to meet the requirements of an extensive range of machinery applications
  • The drives are ideal for food and beverage / material handling / lifting / textile / printing / rubber and plastics / and woodworking applications

Highlights
– Exceptionally compact drives and uniform design
– Quick commissioning with application macros and panel assistants
– Safe torque off function (SIL3) as standard
– Sensorless vector control for induction motors and permanent magnet motors up to 599 Hz
– Built-in braking chopper
– Coated boards – all variants
– IP66 product variant for harsh environments and solar pump drive variant available

Additional information

Weight 8 lbs
Dimensions 10 × 10 × 14 in
