Description

ABB M102-P with MD21 110VAC Motor Control and Protection Unit No: 1TNA920722R2002

• Extended Product Type: Motors
• Product ID: M102-P with MD21 110VAC
• Part No: 1TNA920722R2002
• ABB  Type Designation: Motors

Included In ABB M102-P Kit with MD21 110VAC Motor Control and Protection Unit

• M10x Motor Control and Protection Unit M102-P Auxiliary Supply: 110VAC (1TNA920722R0002)

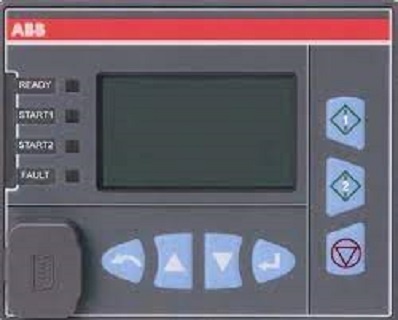

• MD21 Operator Panel (1TNA920500R0002): MD21 provides both LED indicators and LCD
  display
• TA201 Cable (1TNA920005R2101): The cable length is 1.2m with a RJ11 connector
  integrated on each cable end.

Specifications of ABB M102-P with MD21 110VAC Motor Control and Protection Unit

• M102 to be used for drive types as follows:
• NR_DOL, direct online
• NR_DOL/RCU, direct online with RCU
• REV_DOL, reversing direct online
• REV_DOL/RCU
• Actuator, actuator with limit switch input
• NR_S/D, non reversing star-delta
• NR_2N, Two speed driver with separate windings
• NR_2N Dahlander, two-speed driver with single winding
• Autotransformer
• NR_softstarter
• REV_softstarter
• Feeder
• Contactor feeder
• Contactor feeder/RCU
• Parameter monitoring and protection functions related to voltage measurement are provided with M102 only.
• M102 is chosen dependent on:
• Bus type
• the voltage of digital inputs 110VAC
