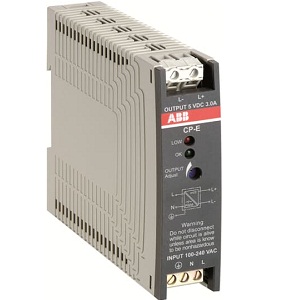

ABB Primary Switch Mode Power Supply CP-E 5/3.0

ABB Primary Switch Mode Power Supply CP-E 5/3.0

• Extended Product Type : Power Supply

• Product ID : CP-E 5/3.0

• ABB Type Designation : Power Supply

Description

• The CP-E 5/3.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 15 W, rated output current is 3.0 A at an output voltage of 5 V DC. The output voltage is adjustable within a range of 4.5 to 5.75 V DC. The output characteristic is hiccup-mode. The power supply allows parallel operation to enable redundancy. A redundancy unit is available as accessory.

Specification of ABB CP-E 5/3.0

• Number of Phases : 1
• Rated Input Voltage : 100 … 240 V AC
• Rated Output Power : 15 W
• Rated Output Voltage : 5 V DC
• Dimensions W x H x D : 22.5 x 90 x 114 mm
• Net Weight : 0.213 kg
