Allen Bradley 1734-IB8

Allen-Bradley 1734-IB8

• Extended Product Type : PLC

• Product ID : 1734-IB8

• Allen-Bradley Type Designation : PLC

Description

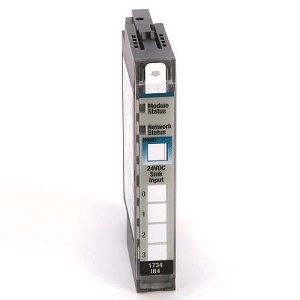

• The Allen-Bradley 1734-IB8 is a POINT IO module that features Eight (8) Discrete sinking input channels. It has One (1) group of channels with Eight (8) inputs per channel. It accepts nominal signal voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.

Specification of Allen-Bradley 1734-IB8

• Series : POINT I/O
• Module Type : Digital DC Sinking Input
• Input Voltage : 24 Volts DC
• POINTBus Current : 75 mA
• No. of Inputs : 8; Sinking input
• Input Voltage range : 10-28.8VDC
• Input Current range : 2-5mA
• Dimensions : 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
