Allen Bradley 1734-IE2C

Description

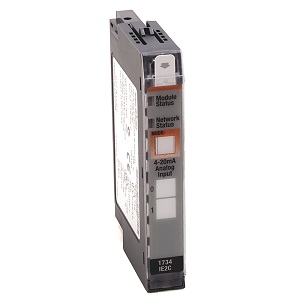

Allen-Bradley 1734-IE2C

• Extended Product  Type : PLC

• Product ID : 1734-IE2C

• Allen-Bradley Type Designation : PLC

Description

• The 1734-IE2C is an analog input module that is part of Allen-Bradley’s POINT IO product family. This module features Two (2) single-ended, non-isolated Current input channels. Each channel is configurable for 0-20 mA and 4-20 mA output signals with 16 bits resolution – over 0…21 mA 0.32 μA/cnt. It is compatible with any POINT IO communication adapter, typically used for implementing distributed I/O architecture. This module requires 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS wiring base assemblies.

Specification of Allen-Bradley 1734-IE2C

• Series : POINT I/O
• Module Type : Analog Input Module
• No. of outputs : Two (2) Single-ended, non-isolated channels
• Output signal : 0-20 mA; 4-20 mA
• Current Draw : 75 mA @5V dc
• Power Dissipation : 0.6 W @ 28.8V DC
• Inputs : 2-Point
• Voltage : 10 to 28.8 Volts DC
• Current : 10 mA
• Dimensions : 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
