Description

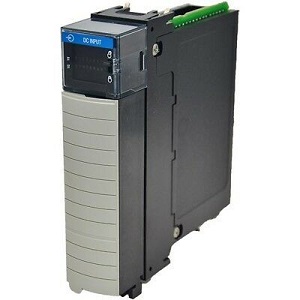

Allen Bradley 1756-IB16 Discrete Input Module 1756IB16

• Extended Product Type: PLC
• Product ID: 1756-IB16
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1756-IB16 Discrete Input Module

The 1756-IB16 is a ControlLogix Discrete input module which operate at a voltage category of 10 to 31.2 VDC with a nominal voltage of 24VDC. This module has Sixteen sinking (16) input channels in Two (2) groups. This module is directly installed to a 1756 local or remote chassis.

Specification of Allen Bradley 1756-IB16 Discrete Input Module

• Series: ControlLogix
• Module Type: Digital DC Input Module
• Inputs: 16
• No. of Inputs: Thirty-Two (32) Inputs
• Input Voltage: 12-24 Volts DC Sink
• Operating Voltage Range: 10-31.2 Volts DC
• Maximum Operating Current: 10 milliamperes at 31.2 Volts DC
