Description

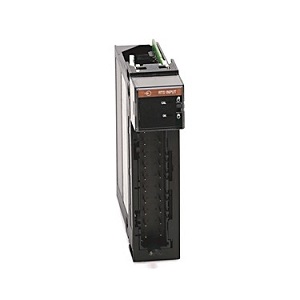

Allen Bradley 1756-IR6I Analog Isolated RTD Module 1756IR6I

• Extended Product Type: PLC
• Product ID: 1756-IR6I
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1756-IR6I Analog RTD Module

The 1756-IR6I is a ControlLogix analog input module. It has Six (6) individually isolated Resistance Temperature Detector (RTD) and Resistor inputs. Compatible RTDs are 100, 200, 500, 1000 ? Platinum, alpha=385; 100, 200, 500, 1000 ? Platinum, alpha=3916; 120 ? Nickel, alpha=672; 100, 120, 200, 500 ? Nickel, alpha=618; and 10 ? Copper .

Specification of Allen Bradley 1756-IR6I Analog Isolated RTD Module

• Series: ControlLogix
• Module Type: Analog RTD Module
• Inputs: 6-Point Isolated RTD
• Input Range: 1…487 ? 2…1000 ? 4…2000 ? 8…4000 ?
• Power Dissipation (Max): 4.3 Watts
