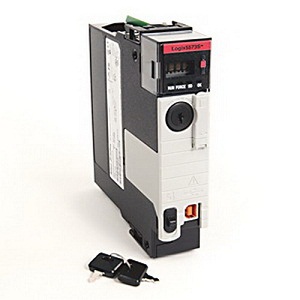

allen-bradley 1756-L73S Processor

allen-bradley 1756-L73S Processor



  • Energy storage modules – 1756-ESMCAP capacitor energy storage module (removable, ships installed with every controller), 1756-ESMNSE capacitor energy storage module (removable, no residual WallClockTime power backup), 1756-ESMNRM capacitor energy storage module (nonremovable, secures controller by preventing USB connection an d SD card use)
  • Standards: C/US UL listed, TÜV certified, CE-ATEX, CE-EMC, CE-MACH, C-tick, KCC certified, ROSTECHNADZOR



Category:
Model Type
PLC Processor

Model Number

1756-L73S

Manufacturer(s)
Allen-Bradley

Additional Information

GuardLogix® Integrated Safety System Controller, Memory: 8 MB, Safety Memory: 4 MB, I/O Memory: 0.98 MB, Optional Non-Volatile Memory Storage: 1 GB (1756-SD1), 2 GB (1756-SD2), Mounting: Chassis, Isolation: 30 V (Continuous), Basic Insulation, USB Port To Backplane, Type Tested At 500 VAC For 60 SEC, Enclosure: Open Type, Rfi Suppression: Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 900 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 1890 MHZ, 3 V/M With 1 KHZ Sine-Wave 80% AM From 2000 – 2700 MHZ, Display: Digital LED, Temperature Rating: 32 – 140 DEG F, Environmental Conditions: Operating Humidity: 5 – 95% (Non-Condensing), Vibration: 2 G, Shock – Operating: 30 G, Non-Operating: 50 G, Current Rating: Draw At 1.2 VDC: 5 MA, Draw At 5.1 VDC: 800 MA, Power Dissipation: 2.5 W, Standard/Approvals: C/US UL listed, TÜV certified, CE-ATEX, CE-EMC, CE-MACH, C-tick, KCC certified, ROSTECHNADZOR

SPECIFICATIONS

  • Item Name: Integrated Safety System Controller

  • Sub Brand: GuardLogix®

  • Memory: 8 MB, Safety Memory: 4 MB, I/O Memory: 0.98 MB, Optional Non-Volatile Memory Storage: 1 GB (1756-SD1), 2 GB (1756-SD2)

  • Mounting: Chassis

  • Isolation: 30 V (Continuous), Basic Insulation, USB Port To Backplane, Type Tested At 500 VAC For 60 SEC

  • Enclosure: Open Type

  • Rfi Suppression: Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 900 MHZ, 10 V/M With 200 Hz 50% Pulse 100% AM At 1890 MHZ, 3 V/M With 1 KHZ Sine-Wave 80% AM From 2000 – 2700 MHZ

  • Display: Digital LED

  • Temperature Rating: 32 – 140 DEG F

  • Environmental Conditions: Operating Humidity: 5 – 95% (Non-Condensing), Vibration: 2 G, Shock – Operating: 30 G, Non-Operating: 50 G

  • Current Rating: Draw At 1.2 VDC: 5 MA, Draw At 5.1 VDC: 800 MA

  • Power Dissipation: 2.5 W
