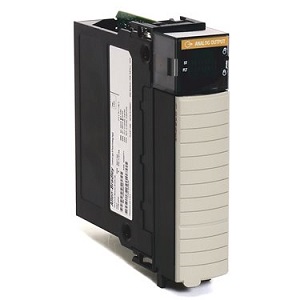

Allen Bradley 1756-OF8I Analog Output Module 1756OF8I

• Extended Product Type: PLC
• Product ID: 1756-OF8I
• Allen-Bradley Type Designation: PLC

Description of Allen Bradley 1756-OF8I Analog Output Module

Allen Bradley 1756-OF8I is a ControlLogix analog output module. This module has Eight (8) individually isolated channels. It is capable of providing Voltage and Current output signals with ranges of -10 to 10V, 0 to 10V, and 0 to 5V and 0-20 mA signals respectively. This module is used to drive modulating actuators and devices. This module is directly installed to any 1756 ControlLogix chassis.

Specification of Allen Bradley 1756-OF8I Analog Output Module

• Series: ControlLogix
• Module Type: Isoloated Analog Output Module
• Outputs: 8 Current
• No. of Outputs: Eight (8) Current / Voltage
• Power Dissipation: 6.5 Watts
• Output Current Range: 0-20 mA; 4-20 mA
• Output Range: 0-20 or 4-20 milliamps
• Output Voltage Range: 10…10V; 0…10V; 0…5V
