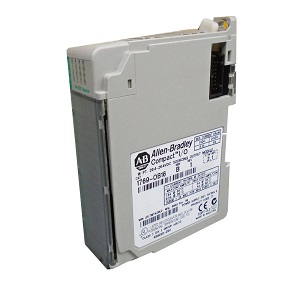

Allen-Bradley 1769-OB16

Description

Allen-Bradley 1769-OB16

• Extended Product Type : PLC

• Product ID  : 1769-OB16

• Allen-Bradley Type Designation : PLC

Description

• The 1769-OB16 is a CompactLogix Discrete output module which operate at a voltage category of 24VDC at a frequency of 47 to 63 Hz. This module has Sixteen (16) outputs in a single group. This module is compatible for use with a 1769 CompactLogix chassis or MicroLogix 1500.

Specification of Allen-Bradley 1769-OB16

• Series : CompactLogix
• Module Type : DC Output Module
• Input Type : Digital Output
• No. of Outputs : 16
• No. of Outputs : 1
• Communication Cable : 16-Point
• Voltage Category : 24V DC source
• Operating Voltage range : 20.4…26.4V DC
• Current per point : 0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F)
• Power : 24 Volts DC
• Bus Current draw, max : 200 mA
• Mounting : DIN rail or panel mount
