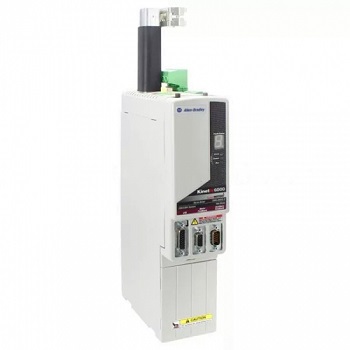

Allen-Bradley 2094-AM03-S AC Drive
- Extended Product Type: AC Drive
- Product ID: 2094-AM03-S
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 2094-AM03-S AC Drive
The 2094-AM03-S is an Allen-Bradley Kinetix 6000 Multi-Axis Servo Drive. This unit is in the AM 200 Volt class. This unit has a Bandwidth Velocity Loop of 500 Hertz and a Bandwidth Current Loop of 1300 Hertz.
Specifications of Allen-Bradley 2094-AM03-S AC Drive
- Brand : Allen-Bradley
- Module Type : Multi-Axis Servo Drive
- Nominal Input Voltage: 650 Volts Direct current
- Continuous Current (rms) : 34.6 Amperes
- Continuous Current (0-peak) : 24.5 Amperes
- Bandwidth Velocity Loop : 500 Hertz
- Internal Shunt (Continuous Power) : 50 Watts
- Internal Shunt (Peak Power) : 1400 Watts
- Internal Shunt Resistor : 115 Ohms
- Efficiency : 98 %
- Weight : 6.9 pounds
The Allen-Bradley Kinetix 6000 2094-AM03-S 200-230V AC Multi-Axis Servo Drive provides integrated motion solutions for drives and actuator applications. This drive can be deployed with any Kinetix 6000M integrated drive-motor system. This servo drive unit must connect to an Industrial Automation and Machinery network (IAM) for enhanced functionality. The Allen-Bradley Kinetix 6000 2094-AM03-S Servo Drive has a nominal input voltage of 325 Volts Direct Current and an average-time current of 17.3 amperes (Root Mean Square) which peaks at 34.6 amperes. This servo unit also offers a continuous current of 24.5 amperes peaking at 48.9 amperes. This unit has a 500 hertz velocity loop and a 1300 hertz current loop with a pulse frequency modulated width of 4 kilohertz.
The Allen-Bradley Kinetix 6000 2094-AM03-S Servo Drive has an internal shunt with a total power output of 50 Watts. This power output peaks at 1400 Watts. The internal shunt features alternative or additional voltage outputs of 405 Volts Direct Current in “shunt-on” mode or 375 Volts Direct Current in “shunt-off” mode. The overall system operational efficiency is 98%. The Allen-Bradley Kinetix 6000 2094-AM03-S Servo Drive has a drive capacitance of 1320 microfarads, and it has a capacitive energy absorption rating of 50 Joules. This Kinetix 6000 230V AC Multi-Axis Servo Drive has a range of safety features, including short-circuit protection for up to 200,000 amperes for the solid-state internal motor. The Allen-Bradley Kinetix 6000 2094-AM03-S Servo Drive boasts power dissipation in percentage rated power output of 48 Watts (at 48%), 68 Watts (at 40%), 91 Watts (at 60%), 116 Watts (at 80%), and maximum 144 Watts (at 100%).
