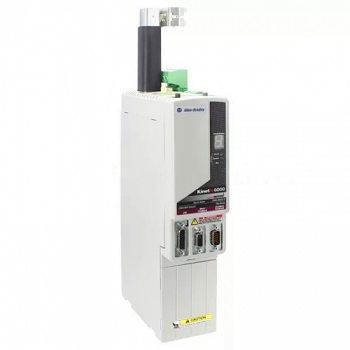

The 2094-AM05-S Kinetix 6000 Module Axis Drive is a unique compact drive which matches advance motion control capability with time and space saving features. It has a 325V DC nominal input voltage rating, with a nominal output current of 11KW. The 2094-AM05-S is a drive with designated input current (RMS) of 34.6A which can peak at 51.9A when operational. It also has a continuous current (0-pk) of 48.9A which can also peak at 73.4A. The drive comes with a 500 Hz drive velocity loop and a current loop at 1300 Hz with a pulse width modulation at 4 kHz.
The 2094-AM05-S has a factory-fitted internal shunt with a 50W power output that peaks at 1400W. It also features a shunt resistor with a resistivity of 115 Ω alongside a 405V DC/375V DC shunt ON/OFF shunt mode. Its drive capacitance is 2640 µF and its capacitive energy absorption is 99 Joules. The 2094-AM05-S is compatible with various Kinetix 6000 drive accessories like the bulletin 2094 power rail, shunt module, slot filler module, mounting brackets, and other drive accessories in the series. The 2094-AM05-S offers internal solid-state motor short-circuit protection against an overcurrent as high as 200,000A.
The 2094-AM05-S has a percentage output power dissipation of 8W at (48%), 68W at (40%), 91W at (60%), 116W at (80%), and 144W at (100%). Its overall operational drive efficiency is 98%, it weighs 6.9lb, and measures 7.8in x 7in x 2.8in x 11.9in x 16.5in. When operational, the 2094-AM05-S can withstand a shock of 15G, and can also function at an altitude of 1000 m (3281 ft) without de-rating.
