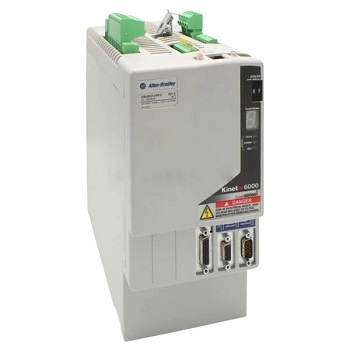

Allen-Bradley 2094-BC02-M02-S AC Drive

Allen-Bradley 2094-BC02-M02-S AC Drive

AVAILABILITY: Generally allow 7-10 days to ship



Category: Brand:

Allen-Bradley 2094-BC02-M02-S AC Drive

  • Extended Product Type: AC Drive
  • Product ID:  2094-BC02-M02-S
  • Allen-Bradley Type Designation: AC Drive

Description of Allen-Bradley 2094-BC02-M02-S AC Drive

The Allen-Bradley 2094-BC02-M02-S is a Kinetix 6000 drive component that is manufactured by Allen-Bradley/Rockwell Automation. The module is a 400-volt class integrated axis module (IAM) and comes with the optional safe torque-off feature. This IAM requires a nominal AC input voltage of 360-480 VAC with an input frequency of 47-63 Hz. The 2094-BC02-M02-S comes with a 15 kW converter and a 15 A inverter. This module has a main AC input current rating of 24 A.

Specifications of Allen-Bradley 2094-BC02-M02-S AC Drive

  • Brand : Allen-Bradley
  • Series : Kinetix 6000
  • Efficiency : 97%
  • Internal Shunt Resistor : 115 Ohms
  • Internal Shunt (Continuous Power) : 50 Watts
  • Internal Shunt (Peak Power) : 5.6 Kilowatts
  • AC Input Current (Nominal RMS) : 24.0 Amps
  • AC Input Current (Maximum Inrush 0-peak) : 22.0 Amps
  • AC Input Frequency : 47 to 63 Hertz
  • AC Input Voltage : 324 to 528 Volts RMS 3 Phase (360 to 480 Volts nom)
  • Weight : 11.2 pounds (5.08 kilograms)

The 2094-BC02-M02-S is an Allen-Bradley Kinetix 6000 Integrated Axis Module (IAM). This module has an input voltage rating of 324-528VAC, rms, 3-phase, with nominal value of 360-480V nom with AC input frequency of 47-63 Hz.

The main AC input current of the 2094-BC02-M02-S is 24.0 Amperes, nominal and maximum inrush current of 22.0 Amperes. The module’s DC input voltage is 458-747VDC and DC input Current of 22.6 Amperes, both in common-bus-follower. The control power AC input voltage of the 2094-BC02-M02-S is 95-264VAC, rms, 1-phase with nominal value of 110-240V, rms.

The 2094-BC02-M02-S has a Bus overvoltage protection and Bus undervoltage protection. The Bus overvoltage rating is 825VDC while Bus undervoltage is 275VDC. The nominal Bus output Voltage is 650VDC.
