• Brand : Allen-Bradley
• Series : 2097
• AC input voltage : 80…264V rms single-phase (240V nom)
• AC input frequency : 48…62 Hz
• Main AC input current, Nom (0-pk) : 2.3 A
• Main AC input current, Nom (rms) : 8.6 A
• Integrated AC Line Filter : Yes
• Control power back-up input voltage : 20…26V DC
• Control power back-up input current, max. inrush : 30 A
• Control power back-up input current, nominal : 500 mA
• Continuous output current (rms) : 4.0 A
• Continuous output current (0-pk) : 5.7 A
• Peak output current (rms) : 12.0 A
• Peak output current (0-pk) : 17.0 A
• Continuous power output(240V nom or 120V ) : 0.80 kW
• Shunt on : 390V DC
• Shunt off : 375V DC
• Dimensions : 9.37 x 7.29 x 2.68 in (238 x 185 x 68.0 mm)
• Weight : 3.7 lbs (1.7 kg)

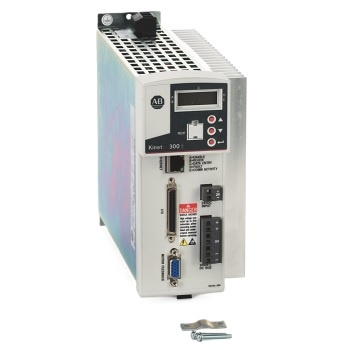

The Allen-Bradley 2097-V32PR2-LM is part of the 2097 Kinetix 300 Etehrte I/P drives. Specifically, the 2097-V32PR2-LM is a Kinetix 350 servo drive which is a high-performance drive with a compact hardware yet highly scalable. This drive features compatibility with the Logix Programmable Automation Controllers (PAC) platform specifically, ControlLogix 1756-L7x and 1756-L7xS and CompactLogix 5370 controllers. This drive offers particular advantage of being compatible with controllers that support integrated motion over Ethernet I/P. Integrating the 2097-V32PR2-LM to controller provides a cost-effective solution by simplifying interconnections.

The 2097-V32PR2-LM input voltage requirement is 80-264Vrms, 1-phase with nominal voltage level of 240Vrms along a frequency range of 48-62 Hz. The drive’s nominal input current is 8.6 A whilthe the max. inrush current that it can withstand is 2.3 A at 240 VAC input. This drive comes with an integrated filter and a control-power backup voltage of 20-26VDC.

The output ratings of the 2097-V32PR2-LM are 4.0 A Continuous output current (rms), 5.7 A Continuous output current (0-pk), 12.0 A Peak output current (rms), and 17.0 A Peak output current (0-pk) while the drive’s output power is 0.80 kW @ 240V nom or 120V (voltage-doubler) mode. This drive has a bus overvoltage rating of 430 VDC and short-circuit current rating of 100,000 A (rms) symmetrical.
