Allen-Bradley AC Drives
Allen-Bradley 22B-D017N104 AC Drive 7.5kW 10HP 22BD017N104
$3,550.00
AVAILABILITY: Generally allow 7-10 days to ship
Availability: 10 in stock
Allen-Bradley 22B-D017N104 AC Drive 7.5kW 10HP 22BD017N104
- Extended Product Type: AC Drive
- Product ID: 22B-D017N104
- Allen-Bradley Type Designation: AC Drive
Description of Allen-Bradley 22B-D017N104 AC Drive 7.5kW

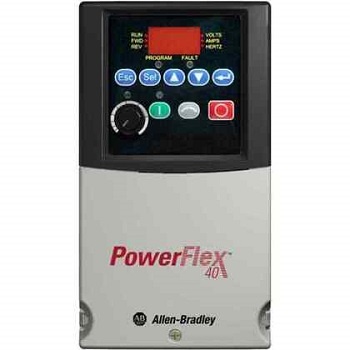

The Allen-Bradley 22B-D017N104 is a PowerFlex 40 Variable Frequency Drive (VFD). This VFD is powered with an input voltage rating of 342-528, 3-phase with applicable motor output of 17.0 A and Power of 7.5 kW (10.0 HP).
Specifications of Allen-Bradley 22B-D017N104 AC Drive 7.5kW 10HP
- Built-in Communication port: RS485
- Keypad: LED Keypad
- Enclosure Rating: IP20 / NEMA UL Type Open
- Installation: Panel Mount
- I/O Terminal: Discrete Inputs: 3 fixed for START/STOP/REV; 4 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 0…10V or 4…20 mA (unipolar) 1 +/- 100V (bipolar) Discrete Output: 1 – N.O/N.C. dry contact; 2 Digital / Optocoupler
- Rated Power: 7.5 kW (10.0 HP)
- Rated Current output: 17.0 A
- Input Voltage: 380-480VAC
- Filter: Without CE Compliant Filter
- Listing: This specification list has been compiled by DO Supply
- Voltage: 480 Volts AC
- Horsepower: 10 Horsepower
- Amperage: 17.0 Amps
- Phase: 3-phase
| Weight | 24 lbs |
|---|---|
| Dimensions | 18 × 16 × 28 in |
