Allen-Bradley 25B-D030N114 AC Drive 20Hp 15kW 25BD030N114

Allen-Bradley 25B-D030N114 AC Drive 20Hp 15kW 25BD030N114

$2,880.00

AVAILABILITY: Generally allow 7-10 days to ship



Availability: 10 in stock

SKU: Allen-Bradley 25B-D030N114 Category: Tag: Brand:

Allen-Bradley 25B-D030N114 AC Drive 20Hp 15kW 25BD030N114

  • Extended Product Type: AC Drive
  • Product ID: 25B-D030N114
  • Allen-Bradley Type Designation: AC Drive

Description of Allen-Bradley 25B-D030N114 AC Drive 20Hp

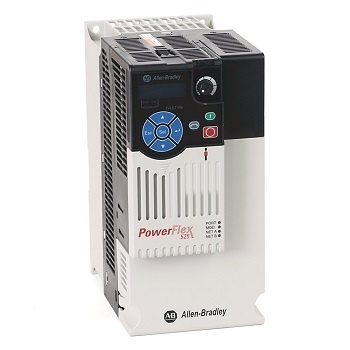

The Allen-Bradley 25B-D030N114 is a PowerFlex 525 Variable Frequency Drive (VFD). This VFD is powered with an input voltage range of 323-528VAC, 3-phase with applicable motor output 30.0 A and Power of 15.0 kW (20.0 HP) for normal duty and Heavy duty operation.

Specifications of Allen-Bradley 25B-D030N114 AC Drive 20Hp 15kW

  • Brand: Allen-Bradley
  • Optional communication protocols: Dual Ethernet I/P; DeviceNet; ProfiBus DP
  • Built-in communication port: Ethernet I/P
  • Enclosure Rating: IP20 / NEMA UL Type Open
  • Installation : Panel Mount/ DIN Rail
  • I/O: Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mAA
  • Output Power: 15.0 kW (20.0 HP)
  • Output Voltage: 0-460VAC
  • Input Voltage: 323-528 VAC
  • Input Phase: 3-Phase
  • Output Current: 30.0 A
  • Frame Size: Frame D
  • Voltage: Three Phase, 480 VAC
  • Interface Module: Standard
  • EMC Filtering Options: Filter
Weight 24 lbs
Dimensions 18 × 16 × 22 in
