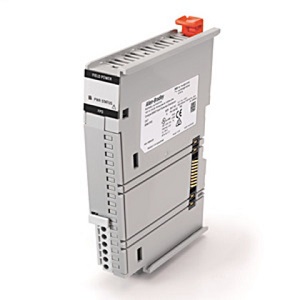

Allen-Bradley 5069-FPD

Description

Allen-Bradley 5069-FPD

• Extended Product Type : PLC

• Product ID  : 5069-FPD

• Allen-Bradley Type Designation : PLC

Description

• The Allen-Bradley 5069-FPD is a Compact 5000 I/O Field Potential Distributor. This module breaks the SA power on the left side and produce a new and isolated SA Power to the right side. This module has MOD Passthrough rating of 9.55 A @ 18-32V DC; SA Power of 10 mA @ 0-32V DC 25 mA @ 0-240V AC, 47-63 Hz ATEX/IECEX, 125V AC, max and SA Power Passthrough of 9.99 A @ 0-32V DC 9.975 A @ 0-240V AC, 47-63 Hz ATEX/IECEX, 125V AC, max.

Specification of Allen-Bradley 5069-FPD

• Series : CompactLogix 5069
• Module Type : Field Potential Distributor (FPD)
• MOD Power : 955 mA @ 18…32V DC
• Installation : DIN Rail
• Compatible DIN Rail : EN50022 – 35 x 7.5 mm (1.38 x 0.30 in.)
• Slot Width : Single Slot
• Power Dissipation : 4.0 Watts
• Dimensions : Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.)
• Weight : 0.39 lbs (175 g)
