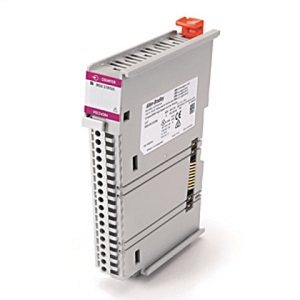

Allen-Bradley 5069-HSC2XOB4 Counter Module 5069HSC2XOB4

• Extended Product Type: PLC
• Product ID: 5069-HSC2XOB4
• Allen-Bradley Type Designation: PLC

Description of Allen-Bradley 5069-HSC2XOB4 Counter Module

The Allen-Bradley 5069-HSC2XOB4 is a Compact 5000 I/O High-Speed counter module. This module features Two (2) quadrature (ABZ) differential inputs and Four (4) sourcing output channels in single group, operating in 12/24VDC voltage category. This module may be connected to Single-ended Encoder, Differential Encoder and Discrete input devices.

Specification of Allen-Bradley 5069-HSC2XOB4 Counter Module

• Series: CompactLogix 5069
• Voltage Category: 12/24VDC
• Module Type: High Speed Counter Module
• MOD Power: 50 mA @ 18…32V DC
• Input Voltage Range: 3-32 Volts DC
• Power Dissipation: 3 Watts
• SA Power: 3 A @ 18…32V DC
• Dimensions: Height of 144.57 mm (5.69 in.); Width of 25.56 mm (1.01 in.) and Depth of 105.42 mm (4.15 in.)
• Weight: 0.39 lbs (175 g)
