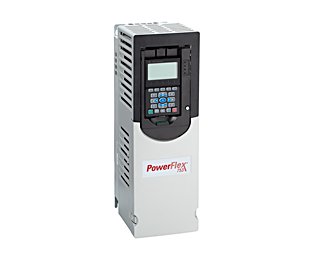

Allen Bradley Inverter Drives Powerflex 753 AC Drives 480VAC 600VAC

Allen Bradley Inverter Drives Powerflex 753 AC Drives 480VAC 600VAC

PowerFlex® 753 AC Drives are cost-effective and easy to use in general purpose applications requiring safety features. They come standard with built-in I/O, which is ideal for machine builders and system integrators who want to reduce engineering costs, deliver machines to market faster, and meet end user demand for more productive machines. Select size-optimized drives for low-power applications where you have limited space available. The Dual-port EtherNet/IP™ Option Module offers flexible, cost-effective methods for leveraging EtherNet/IP networks.

Category:
PowerFlex® 753 AC Drives are cost-effective and easy to use in general purpose applications requiring safety features. They come standard with built-in I/O, which is ideal for machine builders and system integrators who want to reduce engineering costs, deliver machines to market faster, and meet end user demand for more productive machines. Select size-optimized drives for low-power applications where you have limited space available. The Dual-port EtherNet/IP™ Option Module offers flexible, cost-effective methods for leveraging EtherNet/IP networks.

 Description

Catalog Number

Description

20F11FD011AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD014AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD022AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD027AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD034AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD040AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD052AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD065AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD077AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD096AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD2P1AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD3P4AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD5P0AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FD8P0AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FE011AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 11 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FE022AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 22 Amps, 20HP ND, 15HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FE027AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 27 Amps, 25HP ND, 20HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FE032AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 32 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11FE041JA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 41 Amps, 40HP ND, 30HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)

20F11FE052AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Flange Type, 52 Amps, 50HP ND, 40HP HD, 600 VAC, 3PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD011AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD014AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD022AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD027AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD034AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD040AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD052AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD065AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD077AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD2P1AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD3P4AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 3.4 Amps, (Fr1 2HP ND, 1.5HP HD/Fr2 2HP ND, 2HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD5P0AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 5 Amps, (Fr1 3HP ND, 2HP HD/Fr2 3HP ND, 3HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GD8P0AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 8 Amps, (Fr1 5HP ND, 3HP HD/Fr2 5HP ND, 5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GE011AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 11 Amps, 10HP ND, 7.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GE032AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 32 Amps, 30HP ND, 25HP HD, 600 VAC, 3PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GE1P7AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 1.7 Amps, 1HP ND, 0.5HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11GE6P1AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 6.1 Amps, 5HP ND, 3HP HD, 600 VAC, 3PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND011AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 11 Amps, (Fr1 7.5HP ND, 5HP HD/Fr2 7.5HP ND, 7.5HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND014AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 14 Amps, 10HP ND, 7.5HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND022AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 22 Amps, 15HP ND, 10HP HD, 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND027AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 27 Amps, 20HP ND, 15HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND034AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 34 Amps, 25HP ND, 20HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND040AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 40 Amps, 30HP ND, 25HP HD, 480 VAC, 3 PH, Frame 3, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND052AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 52 Amps, 40HP ND, 30HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND065AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 65 Amps, 50HP ND, 40HP HD, 480 VAC, 3 PH, Frame 4, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND077AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 77 Amps, 60HP ND, 50HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND096AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 96 Amps, 75HP ND, 60HP HD, 480 VAC, 3 PH, Frame 5, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)

20F11ND2P1AA0NNNNN

PowerFlex 753 AC Drive, with Embedded I/O, Air Cooled, AC Input with DC Terminals, Open Type, 2.1 Amps, (Fr1 1HP ND, 0.5HP HD/Fr2 1HP ND, 1HP HD), 480 VAC, 3 PH, Frame 2, Filtered, CM Jumper Removed, DB Transistor, Blank (No HIM)
