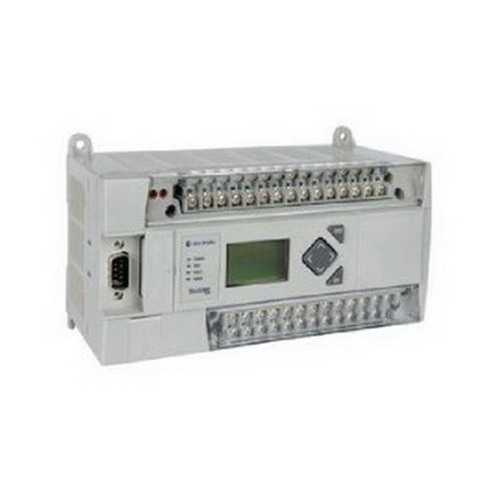

Allen Bradley MicroLogix Plc Module 1766L32BXB
- Maximum controlled load 1080 VA
- Current per channel and group common 2.5 A per channel
- Standards: C-TICK listed, GOST_R certified, KCC certified, MARINE-ABS certified, MARINE-BVS certified, MARINE-GL certified, MARINE-KRS certified, MARINE-LR certified, ROSTECHNADZOR
Description
Model Number
1766-L32BXB
Allen Bradley
Additional Information
MicroLogix™ Programmable Controller, Interface: (1) RS-232/RS-485, (1) Ethernet/IP, Power Supply: 24 VDC, Mounting: DIN Rail, Panel, Input: 12 Fast 24 VDC, 8 Normal 24 VDC, Output: 6 Relay, 3 Fast DC, 3 Normal DC, Length: 180 MM, Width: 90 MM, Height: 87 MM, Temperature Rating: -20 To 60 DEG C, Environmental Conditions: Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G, Standard/Approvals: C-TICK listed, GOST_R certified, KCC certified, MARINE-ABS certified, MARINE-BVS certified, MARINE-GL certified, MARINE-KRS certified, MARINE-LR certified, ROSTECHNADZOR
SPECIFICATIONS
-
Item Name: Programmable Controller
-
Sub Brand: MicroLogix™
-
Interface: (1) RS-232/RS-485, (1) Ethernet/IP
-
Power Supply: 24 VDC
-
Mounting: DIN Rail, Panel
-
Input: 12 Fast 24 VDC, 8 Normal 24 VDC
-
Output: 6 Relay, 3 Fast DC, 3 Normal DC
-
Length: 180 MM
-
Width: 90 MM
-
Height: 87 MM
-
Temperature Rating: -20 To 60 DEG C
-
Environmental Conditions: Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G
Brand
Allen-Bradley
