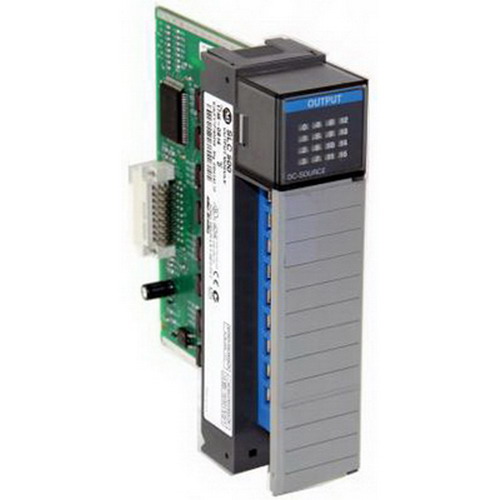

Allen Bradley SLC500 System DC Output Module 1746OB16

Digital DC Output Module, Number Of Channels: 16, Input: 24 VDC, Output: 10 – 50 VDC, On-State Voltage Drop: 1.2 V, Off-State Output Leakage: 1 MA, Load: 1 MA, Current Rating: Backplane: 0.28 A, Continuous Current Per Output: 0.25 A At 60 DEG C, Continuous Current Per Module: 4 A At 60 DEG C, Isolation: Communication Circuits: 500 VDC, Backplane: 1500 VAC, Processor: SLC 500, Enclosure: Open Type, Mounting: Chassis, Temperature Rating: 0 – 60 DEG C, Environmental Conditions: 5 – 95% Non-Condensing Relative Humidity, Shock: 30 G Operating, 50 G Nonoperating, Vibration: 1 G At 10 – 2000 HZ, Response Time: ON Delay: 0.1 MS, OFF Delay: 1 MS, Power Dissipation: 0.338 W, Output Type: Current Sourcing, Surge Current: 3 A For 10 MS, Standard/Approvals: GOST_R certified, KCC certified, MARINE-ABS certified, MARINE-BVS certified, MARINE-DNV certified, MARINE-GL certified, MARINE-KRS certified, MARINE-LR certified, ROSTECHNADZOR certified, UL listed, cUL listed, CE marked, C-Tick certified, KC certified, Application: For use with programmable controllers
