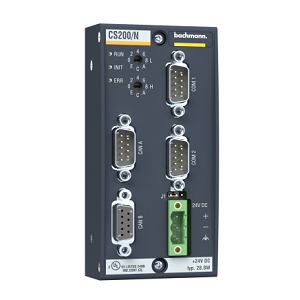

Bachmann CS200/N

Description

Bachmann CS200/N

• Extended Product  Type : PLC

• Product ID : CS200/N

• Bachmann Type Designation : PLC

Specification of Bachmann CS200/N

• Product Type : CANopen Slave Modules
• Protocol : CANopen to CiA DS 301 V3.0
• Number of I / O modules : 15 per station, 30 using bus extension modules BES / BEM or FASTBUS
• Current consumption : 600 mA / 5 V, 15 mA / + 15 V, 40 mA / - 15 V
• Transfer rate : 10 k to 1 Mbaud
• Bus length : Max. 5000 m
• Connection : 2x 9-pin D-Sub female connectors
• Voltage range : 18 to 34 VDC
• Current consumption : Max. 1.2 A at 24 V
• Nominal power : 17 W
