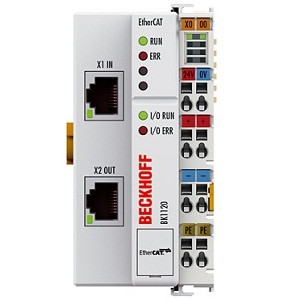

BECKHOFF EtherCAT Bus Coupler BK1120

Description

Beckhoff EtherCAT Bus Coupler BK1120

• Extended Product Type : Other

• Product ID : BK1120

• Beckhoff Type Designation : Other

Specification of Beckhoff BK1120

• Number of I/O stations : 65,535
• Number of I/O points : depending on controller
• Number of Bus Terminals : 64 (255 with K-bus extension)
• Max. number of bytes fieldbus : 1024 byte input and 1024 byte output
• Power supply : 24 V DC (-15 %/+20 %)
• Input current : 70 mA + (total K-bus current)/4, 500 mA max.
• Current supply K-bus : 1750 mA
• Power contacts : max. 24 V DC/max. 10 A
• Weight : approx. 150 g
