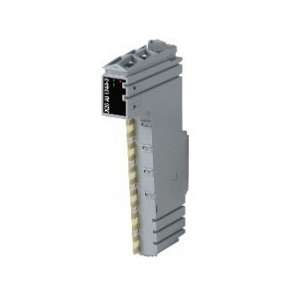

B&R Analog Input Module X20AI1744

Description

B&R Analog Input Module X20AI1744

• Extended Product Type : Other

• Product ID : X20AI1744

• B&R Type Designation : Other

Description

• 1 full-bridge strain gauge input
• Data output rate configurable from 0.1 Hz to 7.5 kHz
• Special operating modes (synchronous mode and multiple sampling)
• Configurable filter level

Specification of B&R X20AI1744

• I/O module : 1 full-bridge strain gauge input
• Power consumption Bus : 0.01 W
• Power consumption Internal I/O : 0.5 W
• Connection : 4- or 6-wire connections
• Input type : Differential, used to evaluate a full-bridge strain gauge
• Operating range :  85 to 5000 Ω
• Voltage supply : 5.5 VDC / max. 65 mA
