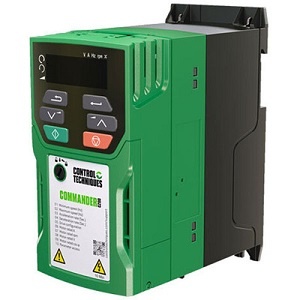

Control Techniques AC Drives C200-05400300A10101AB100

Control Techniques AC Drives C200-05400300A10101AB100

• Extended Product Type : AC Drives

• Product ID : C200-05400300A10101AB100

• Control Techniques Type Designation : AC Drives

Specification of Control Techniques C200-05400300A10101AB100

• Series : Commander C200
• Input Range VAC : 342 to 528 Volts AC
• Input Phase : 3
• HP : 20 Horsepower
• Amps : 30 Amps
• Max. Frequency : 60 Hertz
• Braking Type : Dynamic Braking Resistor (Optional)
• Operator Controls : Keypad Included
• Mounting : Wallpanel
• Dimension(H x W x D) : 15.4 in x 5.6 in x 7.9 in
• Net Weight : 16 lb 5 oz
