Integrated Digital Display – Shows real‑time pressure readings for convenient on‑site verification.
-
High Accuracy and Reliability – Precision pressure sensing for industrial control and safety applications.
-
Robust Construction – Stainless steel wetted parts and diaphragm ensure corrosion resistance and durability.
-
Wide Operating Range – Supports both low and high pressure systems, suitable for various applications.
-
Standard Electrical Interface – Provides easy integration with PLCs, controllers, and control panels.
-
Temperature Compensation – Stable and consistent output across a broad ambient temperature range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 060G2850 |
| Manufacturer | Danfoss |
| Pressure Type | Gauge (positive pressure) |
| Display Type | Integrated Digital LCD/LED |
| Pressure Measurement Range | [Specify exact range – e.g., 0–25 bar; refer to datasheet] |
| Output Signal | 4–20 mA / Voltage (refer to variant) |
| Supply Voltage | Typically 12–36 V DC |
| Operating Temperature | -40°C to +85°C (typical) |
| Wetted Materials | Stainless steel |
| Process Connection | Standard threaded connection (e.g., 1/4″ NPT or BSP) |
| Electrical Connection | Cable gland / connector (specify as required) |
| Protection Rating | IP65 or higher (depending on configuration) |
| Display Units | psi, bar, kPa (configurable) |
| Calibration | Factory calibrated |
| Accuracy | ±X% of Span (refer to datasheet) |
Functional Description

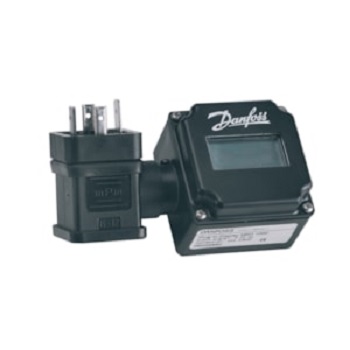

The Danfoss 060G2850 combines a precision pressure sensor with an on‑board display. The sensor element converts pressure applied to the diaphragm into an electrical signal proportional to the pressure level. The integrated display provides an immediate visual readout of system pressure, eliminating the need for external gauges during routine checks and troubleshooting.
The electrical output signal (typically 4–20 mA) is compatible with automation systems and controllers for continuous process monitoring.
Applications
-
Commercial and industrial refrigeration systems
-
HVAC systems (air conditioning and chilled water loops)
-
Process control systems
-
Hydraulic systems requiring pressure display and monitoring
-
Building automation systems
Installation Recommendations
-
Mount the transmitter where it is protected from vibration and direct heat sources.
-
Ensure the transmitter is oriented per manufacturer guidance for accurate readings.
-
Use proper sealing tape or compound on threaded connections to prevent leaks.
-
Connect electrical supply and signal cables securely to prevent noise and interference.
-
Verify that display units are configured correctly for the measurement range used.
Environmental and Safety Ratings
-
Designed for industrial environments with temperature variations.
-
Dust and water protection rating ensures suitability for field installations.
-
Shock and vibration resistant construction enhances durability.
-
Meets applicable industry standards and certifications (CE/UL if specified).
Accessories and Options
Available accessories may include:
-
Mating electrical connectors
-
Mounting brackets
-
Protective shields or housings
-
Calibration certificates (upon request)
Packaging and Shipping
-
Packed in protective materials to prevent damage in transit.
-
Includes manufacturer label with model, serial number, and part number.
-
User manual and installation instructions included.
Warranty
Standard Danfoss manufacturer warranty applies (typically 12 months from date of purchase or commissioning), subject to terms and conditions.
Summary
| Attribute | Detail |
|---|---|
| Model | 060G2850 |
| Type | Pressure Transmitter with Display |
| Display | Integrated digital |
| Output | 4–20 mA / Voltage |
| Accuracy | High (exact % per datasheet) |
| Protection | IP65+ |
| Application | HVAC, refrigeration, industrial |
