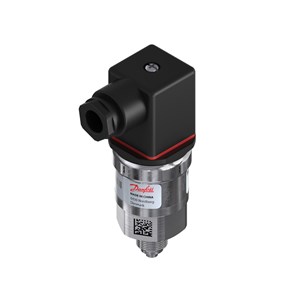

Danfoss 060G1133 Pressure Transmitter MBS 3000-2211-A1AB04-0

Danfoss 060G1133 Pressure Transmitter MBS 3000-2211-A1AB04-0

• Extended Product Type: Pressure transmitter

• Product ID: 060G1133

• Danfoss Type Designation: Pressure transmitter

Description of Danfoss 060G1133 Pressure Transmitter MBS 3000-2211-A1AB04-0

Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: Angular connector, Pressure connection type: G, Pressure connection size: 1/4, Specification key: MBS 3000-2211-A1AB04-0

Specification of Danfoss 060G1133 Pressure Transmitter MBS 3000-2211-A1AB04-0

Pressure & Performance

• Pressure Range: 0 – 16 bar (0 – 232 psi)

• Pressure Reference: Gauge (relative)

• Accuracy (typical): ±0.5 % FS

• Accuracy (maximum): ±1 % FS

• Response Time: ~4 ms (typical for liquids)

• Overload Capability: Multiple times full scale (depending on series)

---

Electrical Specifications

• Output Signal: 4 – 20 mA (2-wire loop powered)

• Supply Voltage: 10 – 30 V DC (often specified 9 – 32 V DC depending on source)

• Polarity Protection: Yes (built-in)

• Connection Type: DIN plug EN 175301-803-A (PG9)

• Connection Pin-out: Pin 1 = supply +, Pin 2 = supply –

---

Mechanical & Materials

• Pressure Connection: G1/4 (EN 837)

• Wetted Parts Material: Stainless steel (AISI 316L)

• Enclosure Protection: Typically IP65 with mating connector

• Weight: ~0.15 – 0.17 kg (net)

---

Environmental

• Operating Temperature (Ambient/Media): –40 °C to +85 °C

• Compensated Temperature Range: 0 °C to +80 °C (varies by configuration)

• Storage/Transport Temperature: Typically –50 °C to +85 °C

---

Certifications & Compliance

• ATEX / CE Evaluated: Yes (limited to specific zones/configurations)

• RoHS: Compliant with conditions/exemptions where applicable

---

Typical Applications

• Industrial automation and process control

• Hydraulic systems and machinery

• Pumps and compressors

• Water treatment and filtration systems

• General pressure monitoring in industrial environments
