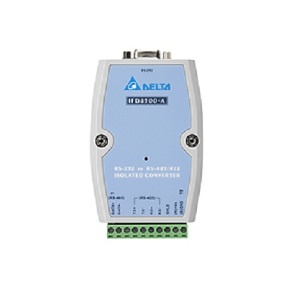

Delta Isolated Converter IFD8500

Delta Isolated Converter IFD8500

• Extended Product Type : Other

• Product ID : IFD8500

• Delta Type Designation : Other

Features

• Detect and configure the communication protocols automatically
• Switch-less and fully-isolated design
• Communication baud rate: up to 115200bps

Specification of Delta IFD8500

• Power supply : +9V ~ +48VDC
• Power consumption : 0.4 W
• Insulation voltage : 5,000 VDC
• Connector : 9-pin D-SUB (receptacle)
• Terminal : 10-pin, accepts AWG1-#12 to #24 wires
• Dimensions (L*W*H) : 4.65*2.79*0.87in (118*71*22mm)
• Weight : 122 g
