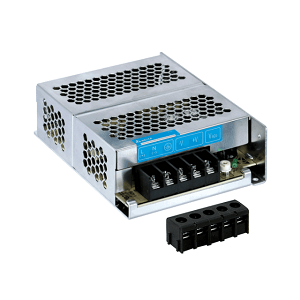

Delta Panel Mounting Power Supply PMC-24V075W1AA

Delta Panel Mounting Power Supply PMC-24V075W1AA

• Extended Product Type : Power Supply

• Product ID : PMC-24V075W1AA

• Delta Type Designation : Power Supply

Features

• Universal AC input range from 85Vac to 264Vac without power de-rating
• Full Aluminium casing for lightweight and corrosion resistant handling
• Conform to harmonic current IEC/EN 61000-3-2, Class A
• High MTBF > 700,000 hrs. as per Telcordia SR-332
• Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections
• Also available: IP20 connector

Specification of Delta PMC-24V075W1AA

• Nominal Output Voltage : 24V
• Output Current : 3.12A
• Output Power : 75W
• Nominal Input Voltage : 100-240Vac
• Input Current :< 1.5A @ 115Vac, < 1.0A @ 230Vac
• Dimensions(L x W x D) : 128 x 97 x 38 mm
• Weight : 0.30 kg
