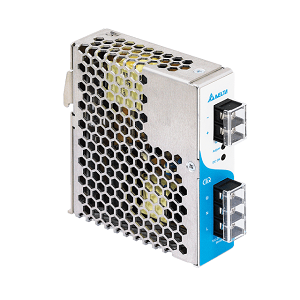

Delta Power Supply DRP012V060W1AA

Delta Power Supply DRP012V060W1AA

• Extended Product Type : Power Supply

• Product ID : DRP012V060W1AA

• Delta Type Designation : Power Supply

Features

• Universal AC input voltage
• Power will not de-rate for the entire input voltage range
• Power Boost of 150% for 3 seconds
• Conformal coating on PCBAs to protect against common dust and chemical pollutants
• Hazardous Locations approval to ATEX and Class I, Div 2 (DRP012V030W1AY)
• Overvoltage / Overcurrent / Over Temperature / Short Circuit Protections

Specification of Delta DRP012V060W1AA

• Nominal Output Voltage : 12V
• Output Current : 5A
• Output Power : 60W
• Nominal Input Voltage : 100-240Vac
• Input Current :< 1.35A @ 115Vac, < 0.80A @ 230Vac
• Dimensions(L x W x D) : 121 x 32 x 120 mm
• Weight : 0.33 kg
