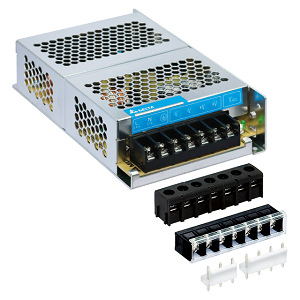

Delta Power Supply PMC-12V100W1AA

Delta Power Supply PMC-12V100W1AA

• Extended Product Type : Power Supply

• Product ID : PMC-12V100W1AA

• Delta Type Designation : Power Supply

Features

• Universal AC input voltage range
• Power will not de-rate for the entire input voltage range
• Full corrosion resistant aluminium casing
• Conforms to harmonic current IEC/EN 61000-3-2, Class A
• High MTBF > 700,000 hrs per Telcordia SR-332
• Safety approval according to IEC/EN/UL 60950-1 (ITE standard) and EMI to EN 55032, Class B

Specification of Delta PMC-12V100W1AA

• Nominal Output Voltage :  12V
• Output Current : 8.34A
• Output Power : 100W
• Nominal Input Voltage : 100-240Vac
• Input Current : < 2.0A @ 115Vac, < 1.1A @ 230Vac
• Dimensions : 158 x 97 x 38 mmc
• Weight(L x W x D) : 0.45 kg
