Endress+Hauser 5W5B2H-AACIGAEABFAAABAHD3SHAA1 Proline Promag W 500

• Extended Product Type: Flowmeter

• Product ID: 5W5B2H-AACIGAEABFAAABAHD3SHAA1

• E+H Type Designation: Flowmeter

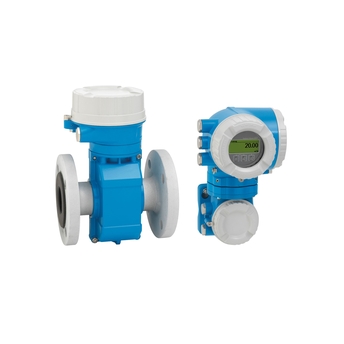

Description of Endress+Hauser 5W5B2H-AACIGAEABFAAABAHD3SHAA1 Proline Promag

The Endress+Hauser Proline Promag W 500 (Model: 5W5B2H-AACIGAEABFAAABAHD3SHAA1) is a high-performance electromagnetic flowmeter engineered for precise, long-term measurement of conductive liquids in demanding water and wastewater environments. Built on the advanced Proline 500 platform, this flowmeter combines maximum measurement accuracy, robust construction, and full digital integration for modern industrial automation systems.

Designed for municipal and industrial applications, the Promag W 500 features a highly durable sensor with corrosion-resistant lining materials and electrodes suitable for aggressive fluids. Its innovative transmitter architecture supports remote installation, enhancing flexibility in system design and maintenance. With integrated diagnostics and smart connectivity, it ensures process transparency and operational reliability.

Optimized for Industry 4.0 environments, this flowmeter supports advanced communication protocols, enabling seamless integration into SCADA, DCS, and PLC systems. Its high ingress protection and rugged housing make it ideal for harsh outdoor installations, including underground chambers and flood-prone areas.

The Endress+Hauser Proline Promag W 500 electromagnetic flowmeter is the industry benchmark for accurate water flow measurement, wastewater monitoring, and industrial fluid control. Engineered for superior reliability, this device delivers bidirectional flow measurement, excellent signal stability, and zero-pressure-loss operation.

With cutting-edge Heartbeat Technology, the Promag W 500 enables continuous self-diagnostics and verification without process interruption. This ensures reduced downtime, lower maintenance costs, and improved compliance with regulatory standards.

Its modular design allows easy configuration, commissioning, and servicing, while its remote transmitter capability simplifies installation in hard-to-access locations. Whether used in drinking water distribution, wastewater treatment plants, or industrial utility systems, this flowmeter guarantees high accuracy and long-term performance.

Technical Specifications of E+H 5W5B2H-AACIGAEABFAAABAHD3SHAA1 Proline Promag

Parameter	Specification
Product Type	Electromagnetic Flowmeter
Model Code	5W5B2H-AACIGAEABFAAABAHD3SHAA1
Measuring Principle	Electromagnetic (Faraday’s Law)
Nominal Diameter Range	DN 25 to DN 2400 (1” to 96”)
Measurement Accuracy	±0.5% of reading (typical)
Repeatability	±0.2%
Medium Conductivity	≥ 5 µS/cm
Output Signals	4–20 mA, Pulse, Frequency, Digital Communication
Communication Protocols	HART, Modbus, PROFIBUS, Ethernet/IP (configurable)
Power Supply	24 V DC / 100–240 V AC
Ingress Protection	IP66/67 (standard), IP68 (optional)
Lining Materials	Hard rubber, Polyurethane (based on application)
Electrode Materials	Stainless Steel, Hastelloy, Platinum (optional)
Process Temperature Range	-20°C to +80°C (typical)
Ambient Temperature Range	-40°C to +60°C
Installation Type	Remote-mounted transmitter
Hazardous Area Approval	Available (ATEX, IECEx)
Diagnostics	Heartbeat Technology (continuous verification)

Key Features of E+H 5W5B2H-AACIGAEABFAAABAHD3SHAA1 Proline Promag

• High Measurement Accuracy: Ensures reliable flow data for billing, monitoring, and process control
• Zero Pressure Loss: Full-bore design eliminates flow obstruction
• Bidirectional Measurement: Accurate flow detection in both directions
• Heartbeat Technology: Real-time diagnostics and verification without process interruption
• Remote Transmitter Design: Flexible installation in harsh or inaccessible locations
• Robust Construction: مقا resistant to corrosion, vibration, and flooding conditions
• Wide Communication Options: Easy integration into industrial automation systems
• Long-Term Stability: Minimal drift and maintenance requirements
• Water & Wastewater Optimized: Certified for drinking water applications

Applications of E+H 5W5B2H-AACIGAEABFAAABAHD3SHAA1 Proline Promag

The Proline Promag W 500 is specifically designed for water and wastewater industries, making it suitable for a wide range of applications:

Municipal Water Systems

• Drinking water distribution networks
• Water treatment plants
• Pipeline flow monitoring

Wastewater Treatment

• Influent and effluent flow measurement
• Sludge and slurry monitoring
• Sewer system flow control

Industrial Utilities

• Cooling water systems
• Process water management
• Effluent discharge monitoring

Infrastructure & Environmental Monitoring

• Irrigation systems
• Flood monitoring stations
• Groundwater extraction

Frequently Asked Questions (FAQ)

1. What makes the Promag W 500 suitable for water applications?

The device is specifically engineered with corrosion-resistant linings and certified materials for drinking water, ensuring safety, durability, and compliance with industry standards.

2. Does this flowmeter cause pressure drop in the pipeline?

No. As an electromagnetic flowmeter, it has a full-bore design with no internal obstruction, resulting in zero pressure loss.

3. What is Heartbeat Technology?

Heartbeat Technology is an advanced diagnostic feature that continuously monitors device health and verifies performance without interrupting the process.

4. Can the transmitter be installed remotely?

Yes. The Proline 500 platform supports remote-mounted transmitters, allowing installation away from the sensor for easier access and maintenance.

5. What types of fluids can be measured?

It is suitable for conductive liquids such as potable water, wastewater, sludge, and industrial process water.

6. Is it compatible with modern control systems?

Yes. It supports multiple communication protocols including HART, Modbus, and Ethernet/IP for seamless integration into SCADA and PLC systems.

7. What maintenance is required?

Minimal maintenance is needed due to its non-intrusive design and built-in diagnostics, which help detect issues early.
