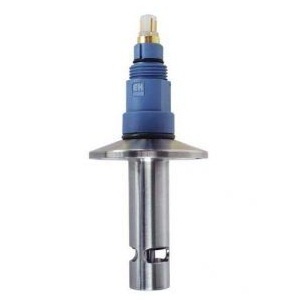

E+H Conductivity Electrode CLS16-4D1A1P

E+H Conductivity Electrode CCLS16-4D1A1P

• Extended Product Type : Other

• Product ID : CLS16-4D1A1P

• E+H Type Designation : Other

Specification of E+H CLS16-4D1A1P

• Conductivity 2-electrode sensor
• Application: hygienic, pure water,
• ultrapure water FDA, EHEDG sterilizable
• ATEX II 1G EEx ia IIC T3/T4/T6 / FM
• Measuring range 0.04-500uS/cm, k=0.1
• Process temp. max 120oC (short 150oC)
• Process pressure max. 12 bar (20oC)
• Materials: 316L, ISOLAST (FFKM)
• 4D Process Connection : Clamp ISO2852 1-1/2” + EN10204-3.1
• 1 Cable Connection : Plug TOP68, w/o cable
• A Temperature Sensor : Pt100
