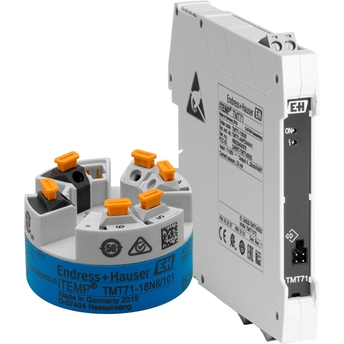

E+H TMT71-BGA1AABA1+B3C1 Temperature Transmitter

• Extended Product Type: Transmitter

• Product ID: TMT71-BGA1AABA1+B3C1

• E+H Type Designation: Transmitter

Description of Endress+Hauser TMT71-BGA1AABA1+B3C1 Temperature Transmitter

The Endress+Hauser TMT71 Temperature Transmitter (TMT71-BGA1AABA1+B3C1) is a high-performance, head-mounted temperature transmitter engineered for precise and reliable temperature measurement in industrial automation environments. Designed to convert RTD and resistance input signals into a stable 4–20 mA output, the TMT71 ensures accurate process control across a wide range of industries including oil & gas, chemical processing, food & beverage, and power generation.

Built with robust industrial-grade components, the TMT71 delivers exceptional long-term stability, high electromagnetic compatibility, and resistance to harsh operating conditions. Its compact design allows seamless installation in standard connection heads (Form B), making it an ideal solution for retrofit and new installations alike.

This model supports advanced diagnostics and linearization, ensuring consistent performance and reduced maintenance downtime. With high measurement accuracy and dependable signal transmission, the TMT71 is optimized for mission-critical applications where precision and reliability are essential.

Key Features of E+H TMT71-BGA1AABA1+B3C1 Temperature Transmitter

• High-accuracy temperature signal conversion (RTD/resistance to 4–20 mA)
• Compact head-mount design for space-saving installation
• Excellent long-term stability and minimal drift
• High electromagnetic compatibility (EMC) for industrial environments
• Pre-configured and factory calibrated for quick commissioning
• Robust housing for harsh process conditions
• Supports Pt100 and other RTD inputs
• Low power consumption with reliable loop-powered operation

Technical Specifications of E+H TMT71-BGA1AABA1+B3C1 Temperature Transmitter

Parameter	Specification
Model Number	TMT71-BGA1AABA1+B3C1
Device Type	Head-mounted temperature transmitter
Input Signal	RTD (Pt100), resistance (Ω)
Output Signal	4–20 mA (analog)
Measurement Range	Configurable depending on sensor type
Accuracy	High accuracy (typically ≤ ±0.1% of span)
Power Supply	Loop-powered (typically 10 to 35 V DC)
Mounting	Connection head (Form B)
Electrical Connection	Screw terminals
Response Time	Fast response, optimized for process control
Ambient Temperature Range	-40°C to +85°C (typical industrial range)
Protection Rating	Depends on installation head (typically IP65/IP67)
Housing Material	Industrial-grade electronics module
Configuration	Factory preset or configurable via tools
EMC Compliance	According to industrial standards
Certifications	Depending on variant (e.g., CE, hazardous area approvals optional)

Applications of E+H TMT71-BGA1AABA1+B3C1 Temperature Transmitter

The Endress+Hauser TMT71 Temperature Transmitter is widely used in industrial environments requiring accurate and stable temperature measurement:

• Oil & Gas Processing: Pipeline monitoring, refining processes
• Chemical Industry: Reactor temperature control and safety monitoring
• Food & Beverage: Hygienic temperature measurement in processing lines
• Power Generation: Boiler and turbine temperature monitoring
• Water & Wastewater: Process and environmental temperature control
• HVAC Systems: Building automation and energy efficiency optimization

E+H TMT71-BGA1AABA1+B3C1 Temperature Transmitter

The Endress+Hauser TMT71-BGA1AABA1+B3C1 Temperature Transmitter is a top-tier industrial temperature transmitter designed for precise RTD signal conversion and reliable 4–20 mA output. Engineered for high accuracy, long-term stability, and seamless integration, the TMT71 is ideal for demanding industrial automation applications.

Whether used in oil and gas, chemical plants, or food processing facilities, this temperature transmitter ensures consistent and accurate readings, helping operators maintain optimal process control and safety. Its compact head-mounted design simplifies installation while reducing wiring complexity, making it a preferred choice for engineers and system integrators.

With superior EMC protection, robust construction, and minimal maintenance requirements, the TMT71 stands out as a reliable and cost-effective solution for industrial temperature measurement.

Frequently Asked Questions (FAQ)

1. What type of sensors can the TMT71 support?

The TMT71 supports RTD sensors such as Pt100 as well as resistance-based inputs, making it versatile for various temperature measurement applications.

2. What output signal does this transmitter provide?

It provides a standard 4–20 mA analog output signal, compatible with most PLCs and control systems.

3. Is the TMT71 suitable for harsh industrial environments?

Yes, it is designed with high EMC resistance and robust construction, making it suitable for demanding industrial conditions.

4. Can the transmitter be used in hazardous areas?

Certain variants of the TMT71 series are available with hazardous area certifications. Always verify the specific model configuration.

5. How is the device mounted?

The TMT71 is a head-mounted transmitter designed to fit inside standard Form B connection heads.

6. Does it require calibration before installation?

No, the device is typically factory calibrated and ready for installation, though it can be configured if needed.

7. What industries commonly use this transmitter?

It is widely used in oil & gas, chemical processing, food & beverage, power generation, and HVAC systems.
