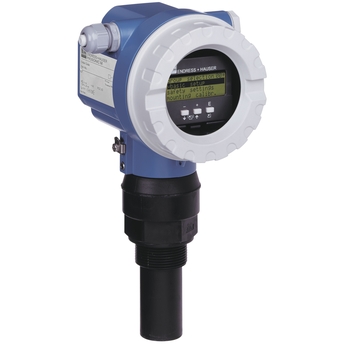

Endress+Hauser FMU41-1NB2A2 Ultrasonic Level Meter FMU411NB2A2

Endress+Hauser FMU41-ARB2A2 Ultrasonic Level Meter FMU41ARB2A2

$1,800.00

AVAILABILITY: Generally allow 7-10 days to ship

SKU: FMU41-ARB2A2 Category: Tag: Brand:

Endress+Hauser FMU41-ARB2A2 Ultrasonic Level Meter FMU41ARB2A2

  • Extended Product Type: Level Miter
  • Product ID: FMU41-ARB2A2
  • E+H Type Designation: Level Miter

Description of Endress+Hauser FMU41-ARB2A2 Ultrasonic Level / Flow Meter

The Endress+Hauser FMU41-ARB2A2 Ultrasonic Level / Flow Meter is a non-contact ultrasonic measuring instrument designed for continuous level and open-channel flow measurement in liquids and bulk solids. It operates using the time-of-flight principle, transmitting ultrasonic pulses toward the product surface and calculating level based on the echo return time.

The FMU41 is engineered for demanding industrial environments where reliability, measurement stability, and low maintenance are critical. Its non-contact measurement eliminates mechanical wear and reduces contamination risk, making it suitable for corrosive, abrasive, or aggressive media. The instrument integrates advanced signal processing algorithms to ensure accurate measurement even in the presence of turbulence, foam, or varying surface conditions.

Designed for ease of installation and commissioning, the device features local display capability and configurable output signals for seamless integration into PLC, SCADA, and distributed control systems. It is well suited for water and wastewater, chemical processing, environmental monitoring, and industrial storage applications.

Technical Specifications for Endress+Hauser FMU41-ARB2A2 Ultrasonic Level Meter

Parameter Specification
Model FMU41-ARB2A2
Measuring Principle Ultrasonic, non-contact time-of-flight
Measured Variables Level, distance, open channel flow
Measuring Range (Liquids) Up to approx. 8 m (depending on application)
Measuring Range (Solids) Up to approx. 3.5 m (depending on material)
Accuracy ±2 mm (typical under reference conditions)
Output Signal 4–20 mA (HART protocol optional depending on configuration)
Power Supply 14–35 V DC (depending on version)
Process Temperature -40°C to +80°C (application dependent)
Process Pressure Atmospheric
Housing Material Field housing, IP-rated industrial enclosure
Degree of Protection IP66 / IP67 (depending on housing option)
Display Integrated local display with push-button configuration
Mounting Options Threaded or flange mounting (configuration dependent)
Signal Processing Echo profile analysis with interference suppression
Certifications CE compliant; other approvals depending on configuration

Applications for Endress+Hauser FMU41-ARB2A2 Ultrasonic Level Meter

The FMU41 ultrasonic level / flow meter is suitable for:

  • Water and wastewater treatment plants
  • Open channel flow measurement (with flumes or weirs)
  • Chemical storage tanks
  • Process water monitoring
  • Bulk solids level monitoring (granulates, powders)
  • Pump station level control
  • Effluent and environmental monitoring systems
  • Industrial liquid storage vessels

Features for Endress+Hauser FMU41-ARB2A2 Ultrasonic Level Meter

  • Non-contact ultrasonic measurement
  • Maintenance-free operation (no moving parts)
  • High measurement accuracy and stability
  • Advanced echo suppression for reliable readings
  • Suitable for corrosive and aggressive media
  • Integrated display and local configuration
  • Flexible analog output for control system integration
  • Rugged industrial housing for harsh environments
  • Open channel flow calculation capability
  • Quick commissioning and simplified parameterization
Weight 12 lbs
Dimensions 10 × 10 × 12 in
