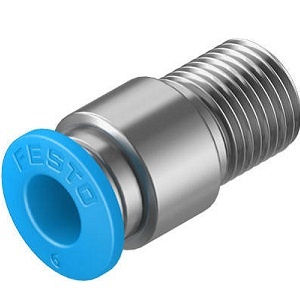

Festo Connector QS-1/8-6-I

Festo Connector QS-1/8-6-I

• Extended Product Type : Other

• Product ID : QS-1/8-6-I

• Festo Type Designation : Other

Specification of Festo QS-1/8-6-I

• Nominal size [mm] : 4.2
• Type of seal on the screw-in spigot : Coating
• Constructional structure : Push-pull principle
• Operating medium : Compressed air according to ISO 8573-1: 2010 [7: -: -] water according to the manufacturer’s declaration at www.festo.com
• Corrosion resistance class KBK : 1 – low corrosion stress
• Pneumatic connection 1 : Male thread R1 / 8
• Pneumatic connection 2 : for hose outside diameter 6 mm
• Product weight [g] : 7.6
