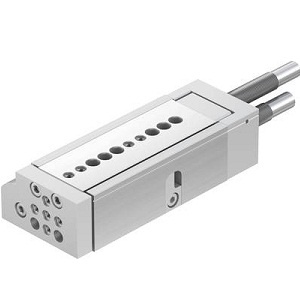

Festo Mini Slide DGSL-16-40-Y3A

Festo Mini Slide DGSL-16-40-Y3A

• Extended Product Type : Other

• Product ID : DGSL-16-40-Y3A

• Festo Type Designation : Other

Specification of Festo DGSL-16-40-Y3A

• Stroke [mm] : 40
• Adjustable end position range / length at the front [mm] : 36.5
• Adjustable end position range / rear length [mm] : 38.5
• Piston diameter : 20 mm
• Damping : Y3: progressive shock absorbers on both sides
• Operating pressure [bar] : 1 to 8
• Corrosion resistance class KBK : 0 – no corrosion stress
• Moving mass [g] : 486
• Pneumatic connection : M5
• Product weight [g] :  1,140
