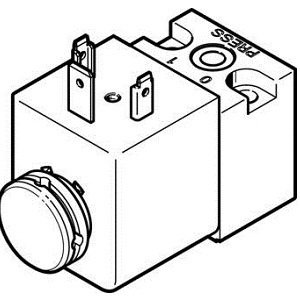

Festo Pilot Valve MDH-3/2-24DC

Festo Pilot Valve MDH-3/2-24DC

• Extended Product Type : Other

• Product ID : MDH-3/2-24DC

• Festo Type Designation : Other

Specification of Festo MDH-3/2-24DC

• Valve function : 3/2 closed monostable
• Type of actuation : electric
• Nominal flow rate [l / min] : 50
• Operating pressure [bar] : 1 to 16
• Constructional structure : Plate seat
• Pitch [mm] : 42
• Exhaust function : not throttled
• Corrosion resistance class KBK : 2 – moderate corrosion
• Pneumatic connection 1 : Sub-base
• Pneumatic connection 2 : Sub-base
• Pneumatic connection 3 : not caught
• Product weight [g] : 140
• Coil characteristics : 42 V AC: 50 Hz, pull-in power 14.5 VA, holding power 9.9 VA 53 V AC: 60 Hz, pull-in power 15.0 VA, holding power 9.3 VA 24 V DC: 6.8 W.
