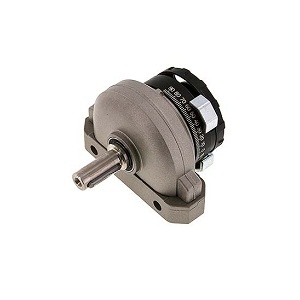

Festo Pneumatic Rotary Drive DSR-25-180-P

Festo Pneumatic Rotary Drive DSR-25-180-P

• Extended Product Type : Other

• Product ID : DSR-25-180-P

• Festo Type Designation : Other

Specification of Festo DSR-25-180-P

• Size : 25th
• Damping angle [deg] : 1.8
• Adjustment range swivel angle [deg] : 0 to 180
• Damping : P: elastic damping rings / plates on both sides
• Functionality : double acting
• Constructional structure : Swivel wing
• Operating pressure [bar] : 1.5 to 8
• Theoretical torque at 6 bar [Nm] : 5.0
• Product weight [g] : 500
• Type of mounting :  with through hole
• Pneumatic connection : M5
