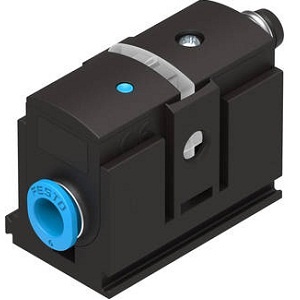

Festo Pressure Sensor SDE5-D10-O2-Q6-P-M8

Festo Pressure Sensor SDE5-D10-O2-Q6-P-M8

• Extended Product Type : Other

• Product ID : SDE5-D10-O2-Q6-P-M8

• Festo Type Designation : Other

Specification of Festo SDE5-D10-O2-Q6-P-M8

• Measured parameter : Relative pressure
• Measurement process : Piezoresistive pressure sensor
• Pressure measurement range end value [bar] : 10
• Control output : PNP
• Switch function : Threshold value with variable hysteresis
• Switching element function : NO contact
• Max. output current [mA] : 100
• Operating voltage range DC [V] : M8x1 3 pin acc. to EN 60947-5-2 Round shape Plug
• Electrical connection : M8x1 3 pin acc. to EN 60947-5-2 Round shape Plug
• Pneumatic connection : QS-6
• Product weight [g] : 19
