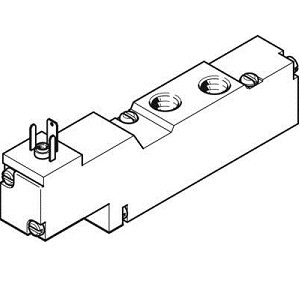

Festo Solenoid MEBH-5/2-1/8-P-L-B

Description

Festo Solenoid MEBH-5/2-1/8-P-L-B

• Extended Product Type : Other

• Product ID : MEBH-5/2-1/8-P-L-B

• Festo Type Designation : Other

Specification of Festo MEBH-5/2-1/8-P-L-B

• Valve function : 5/2 monostable
• Type of actuation : electric
• Overall width [mm] :  17.8
• Nominal flow rate [l / min] : 600
• Operating pressure [bar] : 2.5 to 8
• Nominal size [mm] : 5
• Coil characteristics : 24 V DC: 2.5 W
• Corrosion resistance class KBK : 2 – moderate corrosion
• Product weight [g] : 105
• Electrical connection :  Wiring diagram form C according to EN 175301-803 connector square design according to EN 175301-803
• Pneumatic connection 1,3,5 : Sub-base
• Pneumatic connection 2,4 : G1 / 8
• Control pressure [bar] : 2.5 to 8
