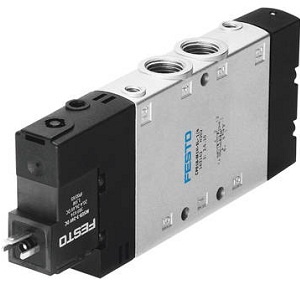

Festo Solenoid Valve CPE18-M3H-5L-1/4

Festo Solenoid Valve CPE18-M3H-5L-1/4

• Extended Product Type : Other

• Product ID : CPE18-M3H-5L-1/4

• Festo Type Designation : Other

Specification of Festo CPE18-M3H-5L-1/4

• Valve function : 5/2 monostable
• Type of actuation : electric
• Overall width [mm] : 18th
• Nominal flow rate [l / min] : 1,500
• Operating pressure [bar] : 2.5 to 10
• Nominal size [mm] : 8th
• Coil characteristics : 230 V AC: 50/60 Hz, pull-in power 3 VA, holding power 2.4 VA
• Corrosion resistance class KBK :  2 – moderate corrosion
• Electrical connection : Connection diagram form C according to EN 175301-803
• Pneumatic connection 1, 2, 3, 4, 5 : G1 / 4
