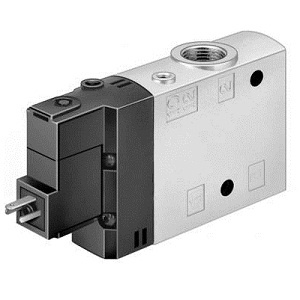

Festo Solenoid Valve CPE24-M3H-3GL-3/8

Festo Solenoid Valve CPE24-M3H-3GL-3/8

• Extended Product Type : Other

• Product ID : CPE24-M3H-3GL-3/8

• Festo Type Designation : Other

Specification of Festo CPE24-M3H-3GL-3/8

• Valve function : 3/2 closed monostable
• Type of actuation : electric
• Overall width [mm] : 24th
• Nominal flow rate [l / min] : 2,500
• Operating pressure [bar] : 2.5 to 10
• Nominal size [mm] : 11
• Coil characteristics : 230 V AC: 50/60 Hz, pull-in power 3 VA, holding power 2.4 VA
• Corrosion resistance class KBK :  2 – moderate corrosion
• Electrical connection : Connection diagram form C according to EN 175301-803
• Pneumatic connection 1,2,3 : G3 / 8
