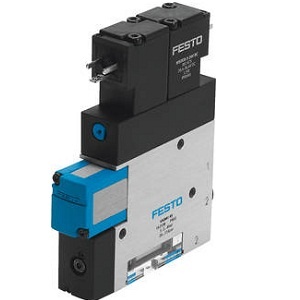

Festo Vacuum Generator VADMI-200

Festo Vacuum Generator VADMI-200

• Extended Product Type : Other

• Product ID : VADMI-200

• Festo Type Designation : Other

Specification of Festo VADMI-200

• Nominal size Laval nozzle [mm] : 2.00
• Silencer design : closed
• Ejector characteristic : high vacuum
• Integrated function : Check valve, on-off valve, electric, discharge pulse valve, electric, throttle filter
• Operating pressure [bar] : 2 to 8
• Operating voltage range DC [V] : 21.6 to 26.4
• Corrosion resistance class KBK : 2 – moderate corrosion
• Type of mounting : with through hole with internal thread optionally
• Electrical connection : M8x1 4-pin connector
• Pneumatic connection 1  : G1 / 4
• Pneumatic connection 3 : Silencer integrated
• Vacuum connection : G3 / 8
• Product weight [g] : 350
