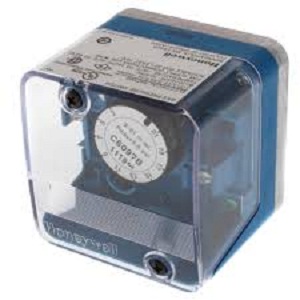

Honeywell Pressure Switch C6097B1119

Description

Honeywell Pressure Switch C6097B1119

• Extended Product Type : Switch

• Product ID : C6097B1119

• Honeywell Type Designation : Switch

Features

• For use with natural gas, liquid propane (LP) gas, or air.
• Diaphragm-actuated safety-limit switch.
• Switch can be wired to turn on alarm.
• C6097A models break control circuit at setpoint on pressure fall.
• C6097B models break control circuit at setpoint on pressure rise.
• Lockout with manual reset and recycle options.
• Lockout models have external manual reset button.
• Removable transparent cover protects scaleplate and adjusting knob.
• Pipe tappings allow selection of positive pressure (air only) or venting connections (NPT mount only).
• 1/4 in. NPT or flange mount models for direct mounting to Honeywell Integrated Valve Train.
• Optional switch position indicator lamp available.
• IP54 enclosure standard.
• Ranges: 0.4 to 5 in.wc, 3 to 21 in.wc, 12 to 60 in.wc or 1.5 to 7 psi.
• Surge orifice.
• Integral vent limiter on all models.

Specification of Honeywell C6097B1119

• Switch Operation : Auto Reset
• Mounting : 1/4 in. NPT internal thread
• Electrical Connections : Screw terminals
• Switching Action : Auto recycle
