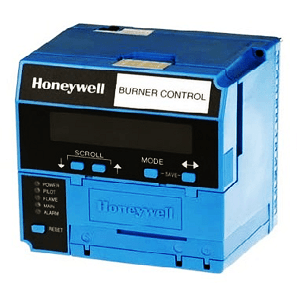

Honeywell Programmer Control RM7800L1087

Honeywell Programmer control RM7800L1087

• Extended Product Type : Other

• Product ID : RM7800L1087

• Honeywell Type Designation : Other

Features

• Functions include automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics and trouble shooting.
• Access for external electrical voltage checks.
• Application flexibility and communication interface capability.
• Five LEDs provide sequence information. Power LED blinks fault code on Lockout.
• Five function Run/Test Switch.
• Interchangeable plug-in flame amplifiers.
• Local or remote annunciation of operation and fault information (optional).
• Nonvolatile memory retains history files and lockout status after loss of power.
• Compatible with existing Honeywell flame detectors.
• RM7800 comes with S7800A1142 Keyboard Display Module.
• Keyboard required to setup Valve Proving Feature and change post purge time.

Specification of Honeywell RM7800L1087

• Application : Programming Control w/VPS
• Weight  : 0.7 kg
• Voltage : 120 Vac (+10, -15%)
• Power Consumption : Driving– 15 VA
• PostPurge : programmed with S7800A1142 display
• Vibration : 0.5 G environment
