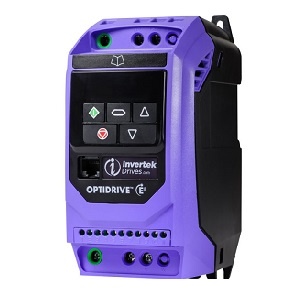

Invertek Drive AC Drives ODE-3-140012-3F12

Description

Invertek Drive AC Drives ODE-3-140012-3F12

• Extended Product Type : AC Drives

• Product ID : ODE-3-140012-3F12

• Honeywell Type Designation : AC Drives

Specification of Invertek Drive ODE-3-140012-3F12

• Series : ODE-3
• Input Range VAC : 380 to 480 Volts AC
• Input Phase : 3
• HP : 0.5 Horsepower
• Amps : 1.2 Amps
• Max. Frequency : 500 Hertz
• Braking Type : DC Injection
• Motor Control-Max Level : Open Loop Vector (Sensorless Vector)
• Operator Controls : Built In
• Comments : Sensorless Vector Control For AC Induction And PM Motors, Feed-thru Wiring For Starter Replacement
• Mounting : PANEL
• Dimension(H x W x D) : 6.8 in x 3.3 in x 4.8 in
• Net Weight : 2 lb 3 oz
