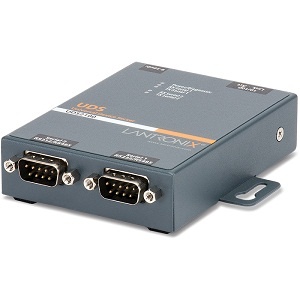

Lantronix Device Server UDS2100

Description

Lantronix Device Server UDS2100

• Extended Product Type : Other

• Product ID : UDS2100

• Lantronix Type Designation : Other

Features

• Network virtually any device in minutes
• Access, monitor and control equipment over Ethernet
• Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
• Configure quickly and easily via HTTP, DHCP, Telnet, serial or Lantronix DeviceInstaller™ utility
• Two DB9M DTE serial ports supporting RS232, RS422 and RS485
• Environmentally-friendly RoHS and WEEE compliant

Specification of Lantronix UDS2100

• Interface : Software-selectable RS232, RS422 or RS485 (2 and 4 wire support)
• Connectors : 2 DB9M DTE serial ports
• Characters : 7 or 8 data bits
• CPU : Lantronix DSTNI-EX 48 MHz clock
• Memory : 256 KB zero wait state SRAM, 2 MB Flash
• Power : 9-30 VDC on barrel connector (1.8 Watts maximum consumption)
• Dimensions (LxWxH) : 9.5 x 7.2 x 2.3 cm (3.7 x 2.8 x 0.9 in)
• Weight : 0.4 kg (0.9 lbs)
