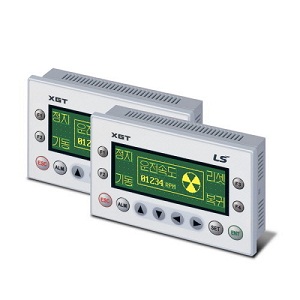

LS HMI XP10-BKB/DC

LS HMI XP10-BKB/DC

• Extended Product Type : HMI/Touch Screen

• Product ID : XP10-BKB/DC

• LS Type Designation :  HMI/Touch Screen

Features

• Screen : 192×64 Graphic STN LCD
• System RAM : 1000 words
• Flash memory : Program/Parameter back up
• Power reguirements : -24 V input or 5 V direct input by LS PLC
• Various fuction key: – ESC, ALM, SET, ENT, F1~F4, Arrow keys

Specification

• Input voltage (5VDC) : DC 4.9 ~ 5.1 (RS-232C port)
• Input voltage(24VDC) : DC 21.6 ~ 26.4 (DC Input connector)
• Consumption current : Less than 200mA
• Display : LED back-light (192×64 Dots)
• Flash memory : 256K bytes
• Language : Default English, Can be swithed to Korean/Chinese/Russian
• RTC : Supports
• Download specification : 115,200 bps
